The chemical anchor is a high-strength anchor bolt made of vinyl resin as the main material. It was called chemical plug in the early days. The chemical anchor bolt is a new type of anchor bolt which appears after the expansion anchor bolt. The special cement bond is used to fix the screw cement in the bore of the crucible substrate to realize the composite member anchored to the fixture.

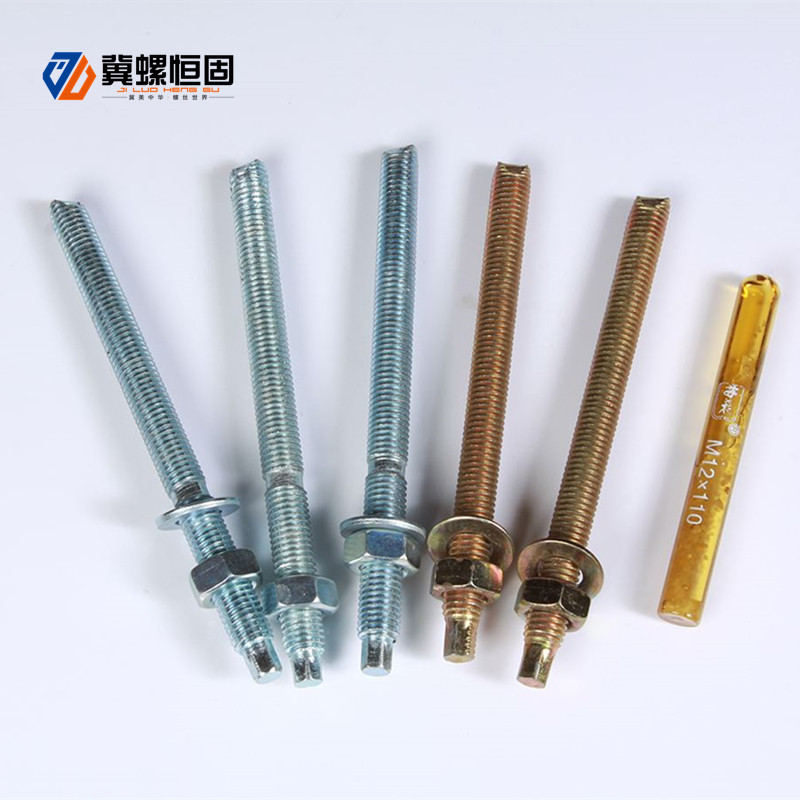

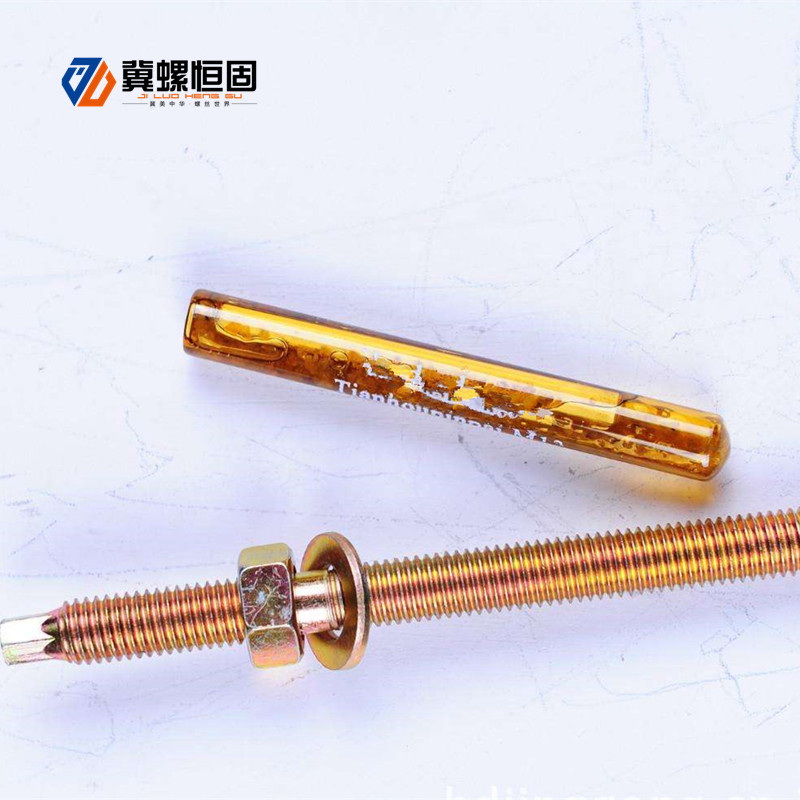

Carbon Steel Galvanized M12 Chemical Anchor Bolt for Curtain Wall Buildings
| Product Name | Carbon Steel Galvanized M12 Chemical Anchor Bolt for Curtain Wall Buildings |
| Material | Carbon steel |
| Color | Zinc white |
| Standard | DIN GB ISO JIS BS ANSI |
| Grade | Customized |
| Thread | Coarse, fine |
| Used | Curtain Wall, Buildings, Highway, Bridge, etc |
Technical parameters
| Epoxy Size | Thread Rod Size | Hole diameter(mm) | Hole depth(mm) | Max anchoring thickness(mm) |
| M8 | M8*110 | 10 | 80 | 13 |
| M10 | M10*130 | 12 | 90 | 20 |
| M12 | M12*160 | 14 | 110 | 25 |
| M16 | M16*190 | 18 | 125 | 35 |
| M20 | M20*260 | 22 | 170 | 65 |
| M24 | M24*300 | 28 | 210 | 65 |
| M30 | M30*380 | 35 | 280 | 65 |
| Size | Design Tension | Destroy Tension | Design Shear | Ultimate Shear |
| M8 | 7.4 | 19 | 7.7 | 11.4 |
| M10 | 12.8 | 30.2 | 12.6 | 18.1 |
| M12 | 14.5 | 43.8 | 18.3 | 26.3 |
| M16 | 28.9 | 70.9 | 34.6 | 49 |
| M20 | 52.4 | 127.4 | 53.5 | 76.4 |
