hollow wall anchor is designed for use in base materials such as plaster, wallboard, or hollow tile. Once the anchor has been set, the screw may be removed as often as necessary without affecting the anchor.
| Anchor size | Grip range | Screw length | Pull out load kgs |
| M4x32 | 3-9 | 41 | 30 |
| M4x46 | 3-20 | 54 | 30 |
| M5x37 | 6-13 | 45 | 45 |
| M5x50 | 3-16 | 60 | 45 |
| M5x65 | 14-32 | 74 | 45 |
| M6x37 | 6-13 | 45 | 53 |
| M6x50 | 3-16 | 60 | 53 |
| M6x65 | 14-32 | 74 | 53 |
| M8x37 | 6-13 | 45 | 65 |
| M8x53 | 3-16 | 65 | 65 |
| M8x65 | 14-32 | 75 | 65 |
1. Grade: 4.8
2. Size: All
3. Standard: DIN
4. Certification: ISO9001
|
Product Name
|

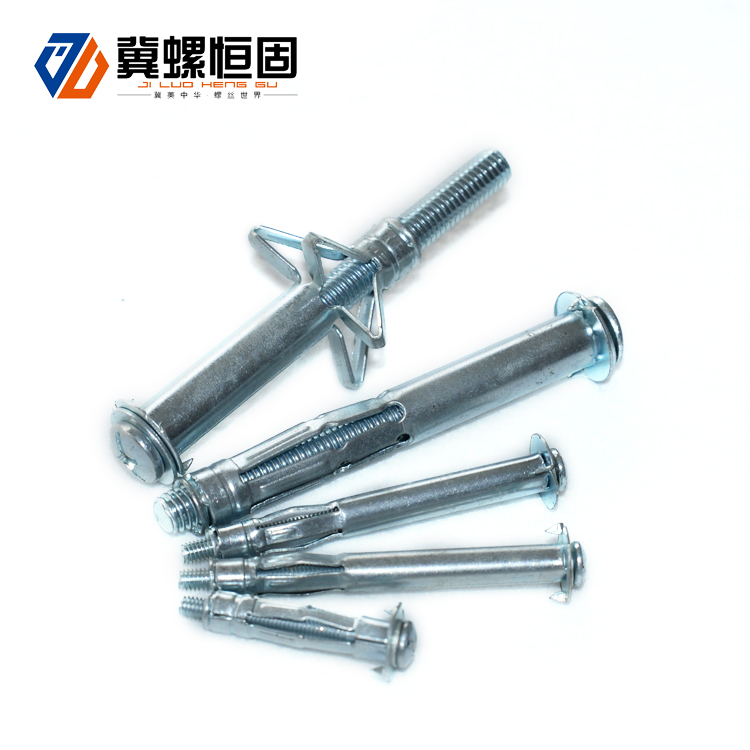

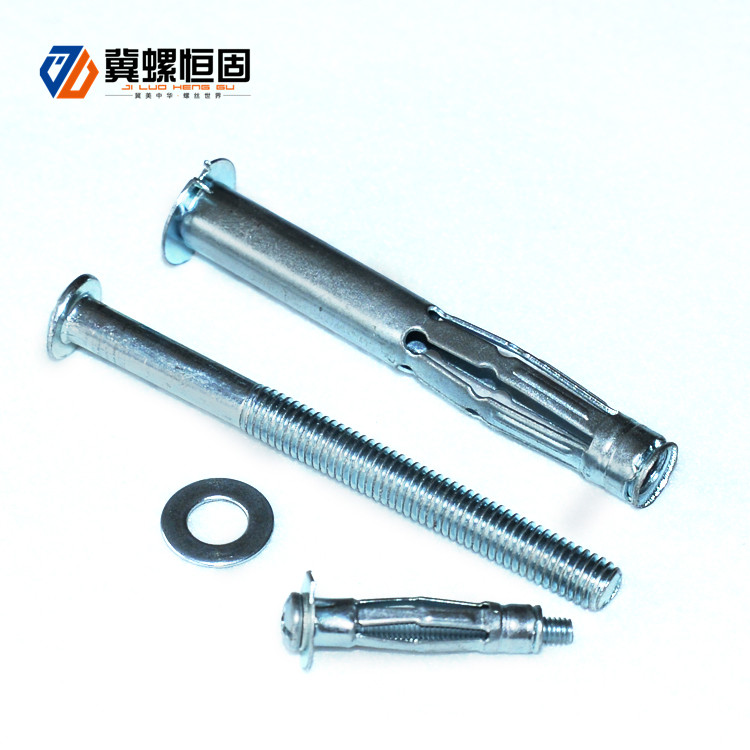

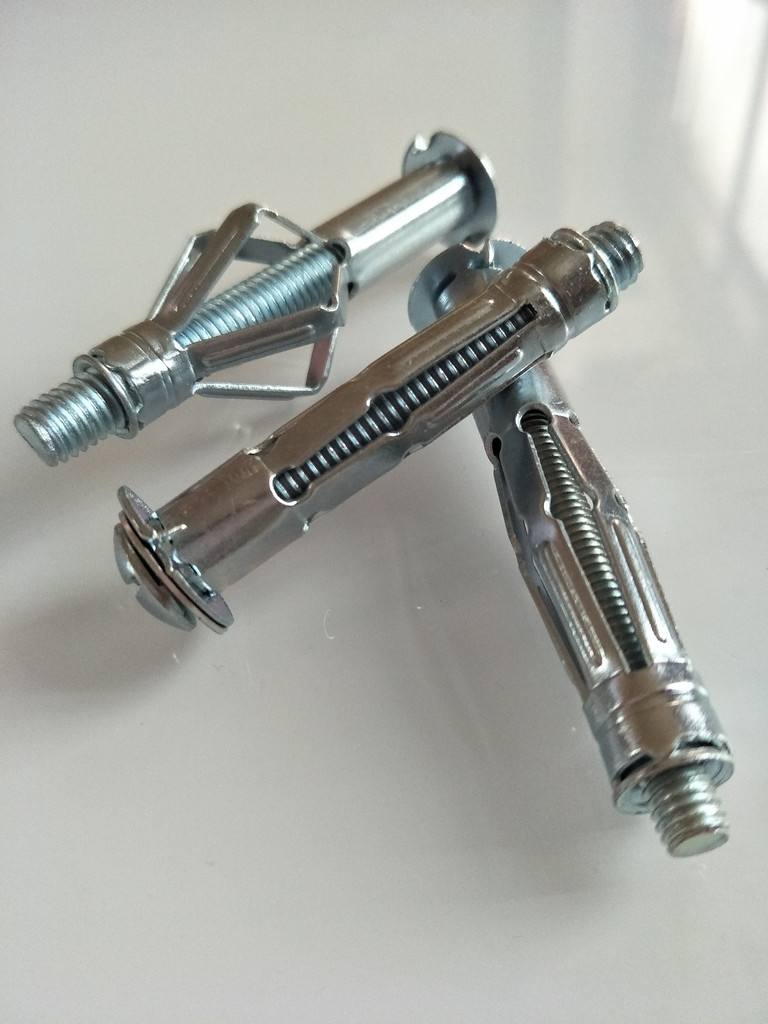

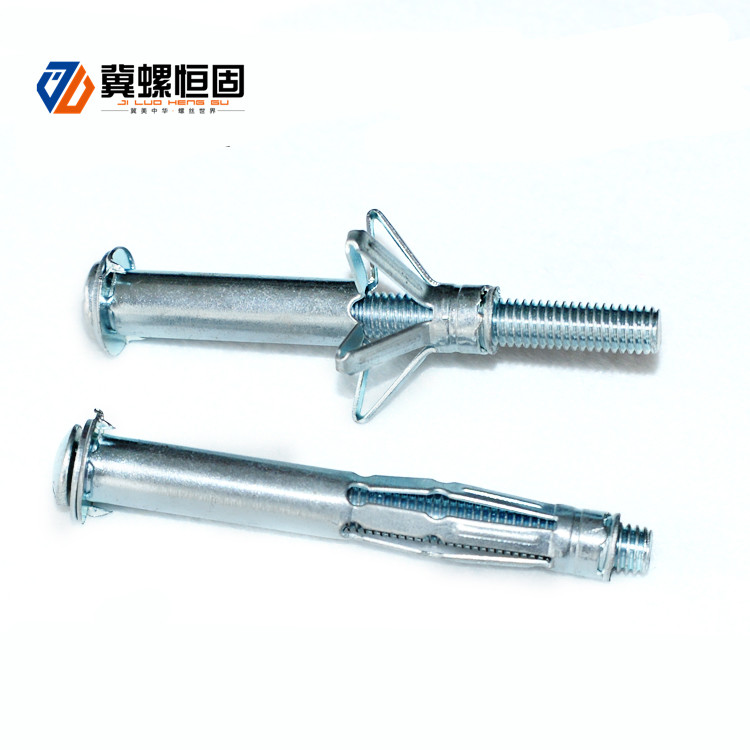

Ruowang Low carbon steel White zinc Hollow wall anchor bolt
|
|
Material
|
carbon steel
|
|
Color
|
Yellow or Bright
|
|
Standard
|
DIN/GB
|
|
5Grade
|
4.8,8.8
|
|
Certification
|
ISO9001
|
|
Thread size
|
All
|
|
Suitable substrate
|
Concrete, Stone, Marble
|
